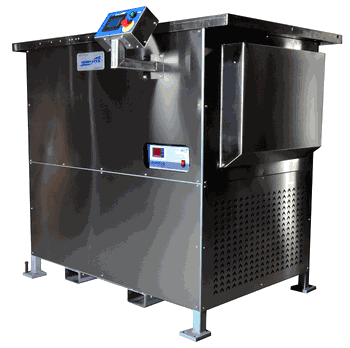

Two Stage Vapor Degreaser Refrigerated Primary Cooling 7 Gallon

Vapor Degreaser
Vapor Degreaser
Vapor Degreaser with Solvent in it.
Item #:
Contact us for availability
Pistol grip sprayer:
Sub-zero secondary:
Automatic cover:
Filtration system:
Stainless plumbing:
Vertical travel:
Vert + horiz travel:
B-7G parts basket:
  • Product Description
  • Specifications
  • Video

Vapor Degreaser:

Two Stage Vapor Degreaser Refrigerated Primary Cooling 7 Gallon. Sharpertek Vapor Degreasers are exceptionally cost-effective units that incorporate Solvent washing, rinsing, and drying – in a single compact unit.

Sharpertek Line of Vapor degreasers are made in the USA using best quality US components.  This line of vapor degreasers are water cooled.

Standard Features:

  • All stainless tank fabrication
  • Stainless immersion heaters
  • Thermal insulation
  • Low liquid level protection
  • Refrigeration Cooled and Operator Programmable per Solvent used
  • Auto-reset digital cycle timers
  • Thermal insulation

Available Options:

  • Non-standard input power configurations
  • Heat system, with stainless immersion heaters, digital temperature controllers
  • Continuous oil sweep/removal systems
  • Circulating filter & turbo-filter combo systems
  • Power lift
  • Totally enclosed unit


Item#SHVP7G Item#SHVP10G Item#SHVP25G Item#SHVP50G Item#SHVP80G
Working dimensions 8" x 11" x 7.5"D 10" x 12" x 8"D 12" x 16" x 16"D 16" x 20" x 16"D 20" x 24" x 17"D
Watts of Immersion Heat 1500 2000 4000 8000 12000
Load capacity 150 lbs.steel/hr 200lbs.steel/hr 400lbs.steel/hr 800lbs.steel/hr 1200lbs.steel/hr
Vapor zone 17" L x 11" W x 9"D 21"L X 12"W X 10"D 25"L X 16"W X 12"D 33"L X 20"W X 16"D 41"L X 24"W X 20"D
Solvent capacity 7gallons 10 gallons 25 gallons 50 gallons 80 gallons
Overall 51"L x 22"W x 46" H 54.7"L x 33"W x 48"H 64.7"L x 32.5"W x 48.7"H 86"L x 36.5 "W x 60"H 108"L x 40.5"W x 68"H
Input power 208/230V, 60 Hz,
1 ph, 18A
208 or 230V 3phase 28A 208 or 230V 3phase 40A 208 or 230V 3phase 62A 208 or 230V 3phase 81A

Power Lift Mechanism is Optional
